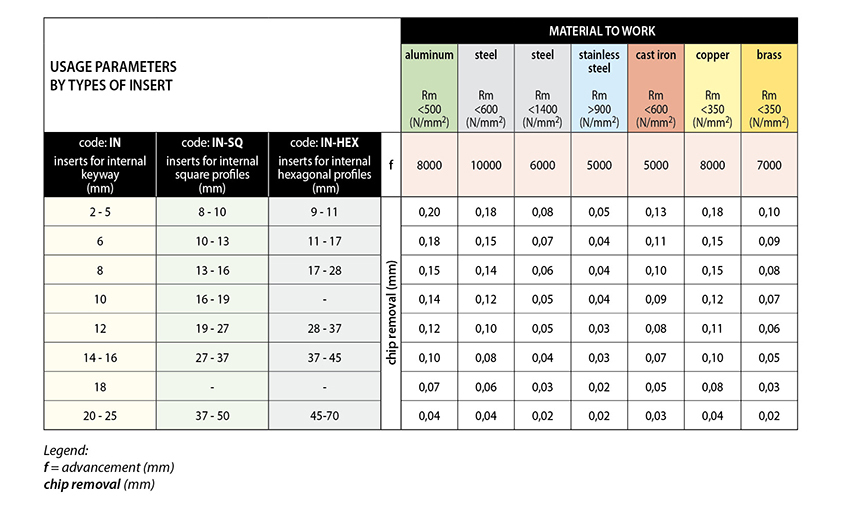

WORKING PARAMETERS BY INSERT TYPE AND MATERIAL TYPE

– SYSTEM FLEXIBILITY AND MACHINING TIME

The chance to produce inserts with the most different shapes makes it possible to machine inner profiles which can othewise obtained only at high costs. It is understood that the cutting speed and the cutting increase at every hit depend on the kind of material to machine. When a high quantity production is not required the BT/BTA system can be used to machine inner splines and involute splines.

– CNC MACHINE TOOL PROGRAMMING

On demand, we can provide free machine programs on the main machine tools, using the most popular CNC controls. The programs are structured so that some processing parameters are left available to the machine operator.

– CUTTING SPEED AND CUTTING INCREASE HIT BY HIT

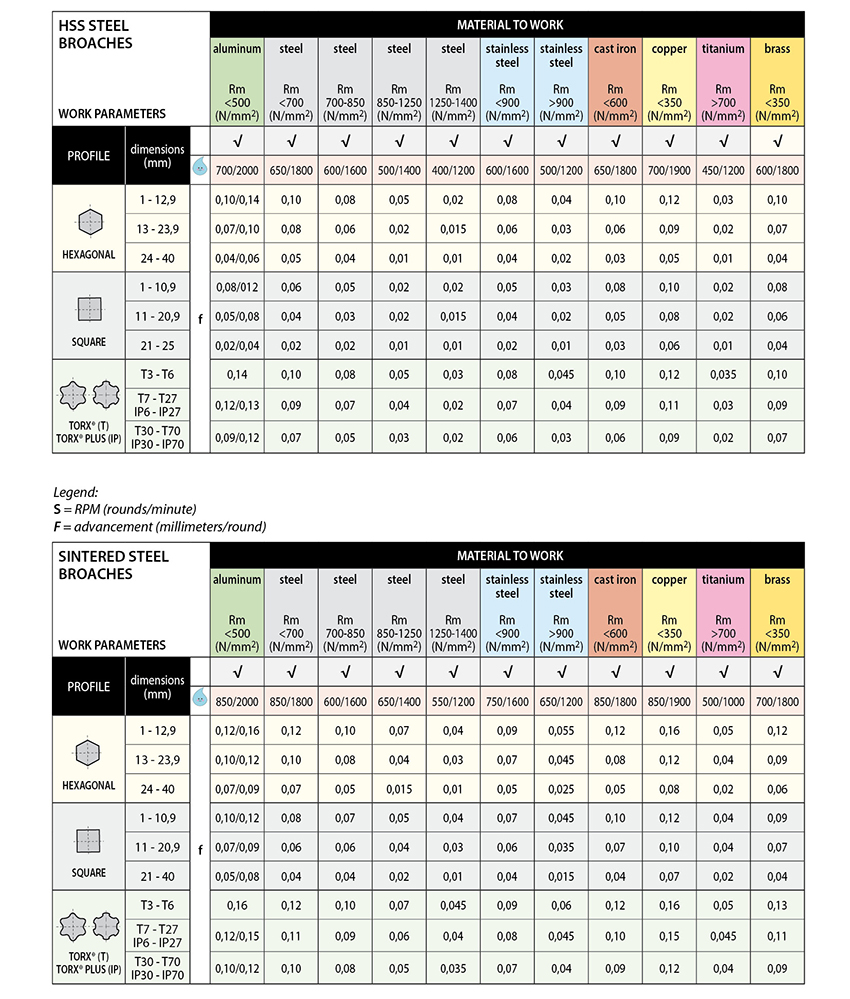

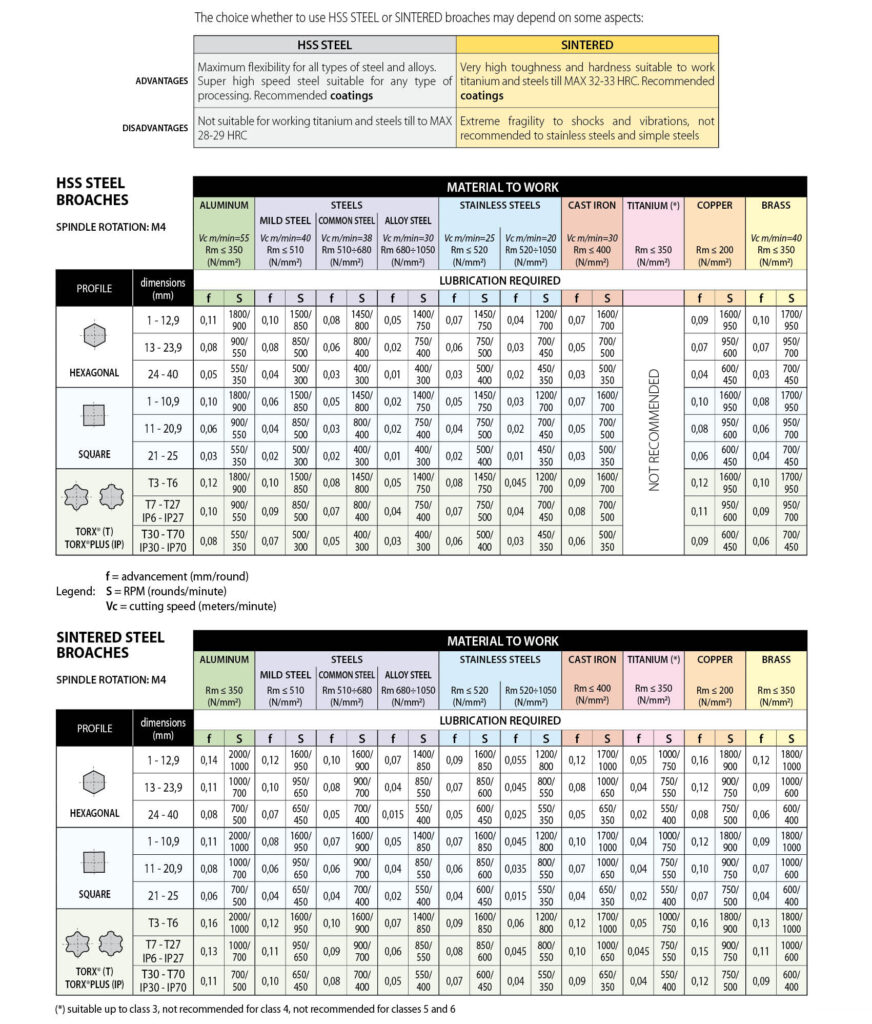

Down below there are our suggestions about machining parameters with regards to the material to machine:
